TIANHE Wear Sub is an essential component within the Drilling Tools string, engineered to proactively protect costly drill pipes, tool joints, and casings from premature wear. As a specialized and sacrificial Drilling Tools component, this Wear Sub significantly enhances the longevity and reliability of the entire drill string, making it a critical asset for demanding drilling operations.

Product Structure & Design
The TIANHE Wear Sub is precision-engineered from three core components: a highly wear-resistant rubber sleeve, a metal stiffening liner, and a robust sub body. The advanced rubber sleeve is strategically installed in the middle of the sub body, with a calculated clearance that allows it to rotate freely. This rotation is the key to its protective function. Manufactured from proprietary rubber mixtures offering exceptional wear resistance, the sleeve acts as the primary contact point.

Enhanced Functionality & Operational Principle
This Wear Sub functions as a guardian in the Drilling Tools assembly. Its operational principle is both simple and highly effective:

• Primary Contact Point: The outer diameter (O.D.) of the rubber sleeve is deliberately designed to be larger than the O.D. of all other drill pipe tool joints. This ensures that the Wear Sub is the first and only component in the Drilling Tools string to make contact with the casing wall, creating a protective barrier.

• Friction Reduction: During drilling operations, the relative rotation between the rubber sleeve and the sub body, combined with the sleeve's inherent softness and lubricity, transforms harsh sliding friction into a less damaging interaction. This drastically reduces the wear rate on both the sleeve and the casing.

• Extended Tool Life: By centralizing the string and absorbing the abrasive forces, this Wear Sub effectively shields all adjacent Drilling Tools, including drill pipes and tool joints. This leads to a substantial reduction in their wear and tear, lowering replacement costs and minimizing non-productive time.

Key Application Scenarios
The TIANHE Wear Sub is an indispensable Drilling Tools solution for a wide range of high-wear applications, including:

• Directional, Horizontal, and Extended-Reach Drilling (ERD): Protects casing in high-angle sections where the Drilling Tools string is in continuous contact with the wellbore.

• Casing Wear Critical Wells: Deployed as a vital protective measure to ensure casing integrity and long-term well viability.

• High-Abrasion Formations: Effectively mitigates wear when drilling through abrasive sandstones or other tough formations, safeguarding the entire suite of Drilling Tools.

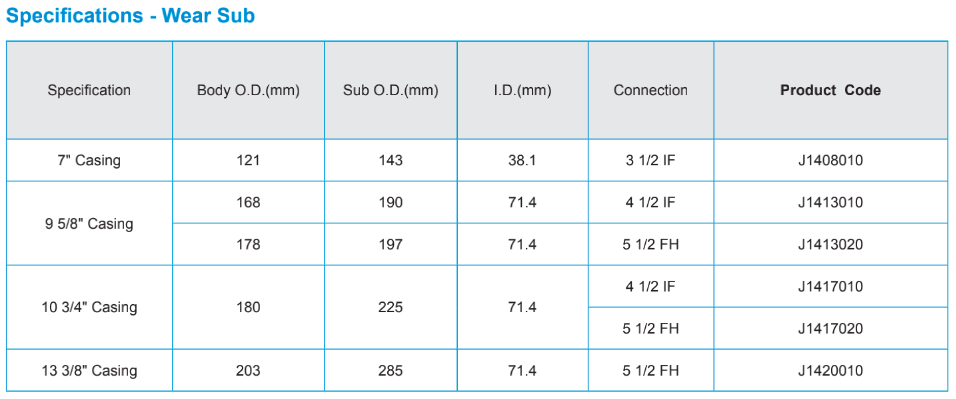

Ordering Information
To ensure optimal performance and compatibility with your specific Drilling Tools setup, please provide the following details when ordering the TIANHE Wear Sub:

● Casing size and weight, or required O.D. of the Wear Sub;
● Connection type and size for integration with your Drilling Tools string.
